DESCRIPTION

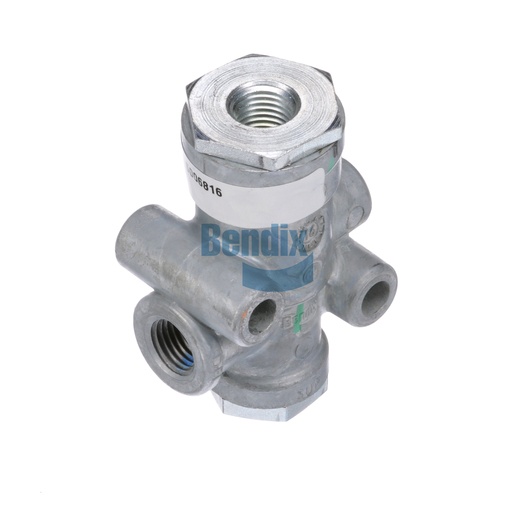

The Synchro Valve is a critical component that ensures smooth operation in air and hydraulic braking systems. Designed for high reliability, this valve helps synchronize braking actions, providing consistent performance and enhanced safety. Constructed from durable materials, it can withstand harsh operating conditions, ensuring reliability across a wide temperature range from -40°F to 200°F. Its compact design facilitates easy installation and integration into various braking systems, making it a versatile choice for fleet operators. By choosing this essential component, you help guarantee the safety and efficiency of your vehicle's braking system. For the best in genuine Bendix parts, Source One Parts Center is your top destination for authentic OEM components that deliver exceptional quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Exhaust Opening Pressure (Common CON / SUP)
11 PSI
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Common CON / SUP)
21 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
38 PSI
Length
56.9 mm (2.24 in)
Height
73.2 mm (2.88 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.66 lb
