DESCRIPTION

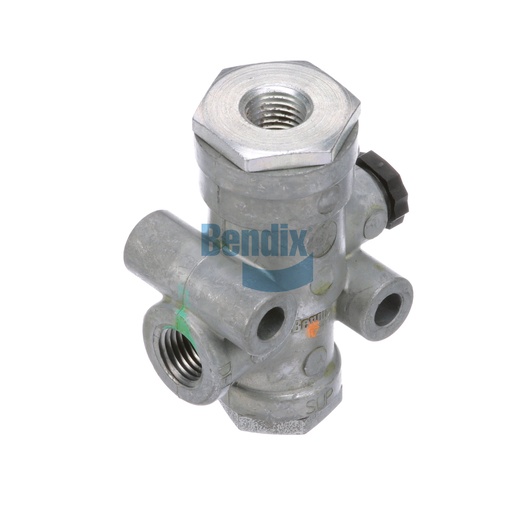

The Bendix Synchro Valve is an essential component in your vehicle’s braking system, ensuring precise control and optimal performance. Designed to handle both air and hydraulic systems, this valve features multiple ports for efficient airflow management, enabling rapid response times when engaging the brakes. Constructed with durable materials, it can operate within a wide temperature range, guaranteeing functionality in various environmental conditions. Its compact size and innovative design allow for easy installation and maintenance, making it a smart choice for fleet operators seeking reliability and efficiency. By sourcing your parts from Source One Parts Center, you can trust that you are getting genuine Bendix OEM parts that meet the highest standards in the industry.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT (w/ Breather)
Exhaust Opening Pressure (Common CON / SUP)
11 PSI
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Common CON / SUP)
21 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
38 PSI
Length
56.9 mm (2.24 in)
Height
72.9 mm (2.87 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.49 lb
