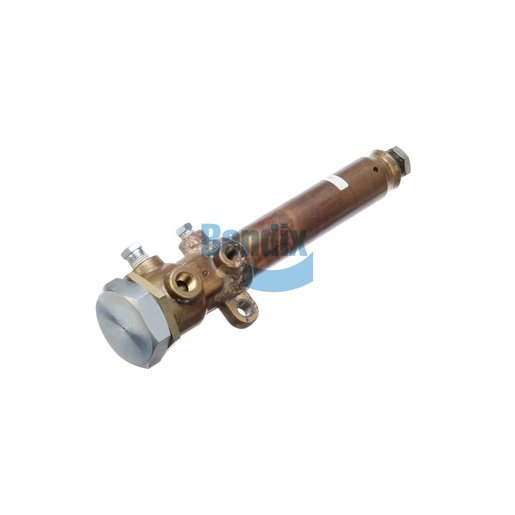

275957N
Cylinder
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Cylinder is a crucial element for efficient control in pneumatic systems, particularly in throttle control applications. This high-performance cylinder, with a net weight of 1.4 kg (3.11 lb), is designed for durability and reliability, ensuring optimal functionality in demanding environments. Its innovative design allows for precise control of air flow, which is essential for maintaining engine performance and efficiency. The cylinder features a robust construction that withstands high pressures, making it suitable for various commercial truck applications. With a maximum operating pressure of 60 PSI, this cylinder efficiently manages throttle response, contributing to enhanced vehicle performance. Opting for genuine Bendix OEM parts like this cylinder ensures that you receive components of the highest quality. Source One Parts Center is your best source for Bendix parts, providing a comprehensive inventory that meets the specific needs of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Fast Idle Position
.28 IN
VMRS
044-007-021: Cylinder - Throttle Control, Pneumatic
Stroke
1.88 IN
Reservoir Port 1
1/4-18 NPT
Reservoir Port 2
1/4-18 NPT (Plugged)
Throttle Valve Port 1
1/8-27 NPT
Throttle Valve Port 2
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Length
241.3 mm (9.5 in)
Initial Operating Pressure
25 ± 5 PSI
Fast Idle Release Pressure
30 PSI
Push Tube Adapter
5/16-24 UNF-2B
Width
54.0 mm (2.13 in)
Final Operating Pressure
60 ± 5 PSI
Height
67.9 mm (2.67 in)
Harmonized System (HS) Code
841231
Country of Origin
United States
Mounting
Ø .376 IN
Weight
3.11 lb
