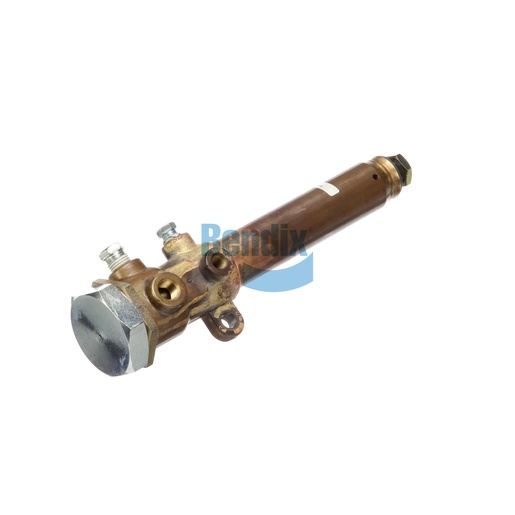

279414N
Cylinder
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Cylinder is an essential component of your truck's throttle control system, ensuring precise regulation of air flow. Designed for heavy-duty applications, this cylinder is engineered to withstand extreme conditions, providing reliable performance under pressure. Its robust construction guarantees longevity, making it a critical part of maintaining optimal engine performance. By using a Bendix Cylinder, you can ensure that your vehicle operates efficiently, enhancing both power and fuel economy. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring your truck remains in top condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Fast Idle Position
.28 IN
VMRS
044-007-021: Cylinder - Throttle Control, Pneumatic
Stroke
1.88 IN
Reservoir Port 1
1/4-18 NPT
Reservoir Port 2
1/4-18 NPT (Plugged)
Push Tube Adapter
1/4-28 UNF-2B
Throttle Valve Port 1
1/8-27 NPT
Throttle Valve Port 2
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Length
241.3 mm (9.5 in)
Initial Operating Pressure
25 ± 5 PSI
Fast Idle Release Pressure
30 PSI
Width
54.0 mm (2.13 in)
Final Operating Pressure
60 ± 5 PSI
Height
67.9 mm (2.67 in)
Harmonized System (HS) Code
841231
Country of Origin
United States
Mounting
Ø .376 IN
Weight
3.31 lb
