$16.95
$20.34
Minimum Quantity 5
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

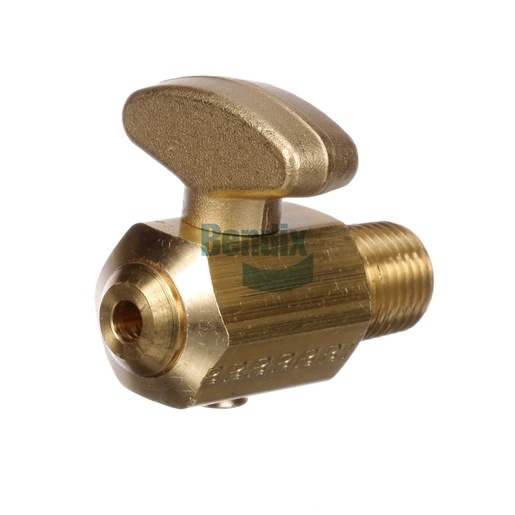

The Drain Cock is an essential component for managing air reservoirs in commercial vehicles, designed to facilitate the removal of moisture and contaminants from the air brake system. Its elliptical key handle allows for easy operation, ensuring quick drainage when needed. Constructed to withstand extreme temperatures, this drain cock is built for longevity and reliable performance. With a net weight of only 0.1 kg (0.22 lb), it offers a lightweight solution that doesn't compromise on functionality. For high-quality Bendix parts that meet your vehicle's needs, Source One Parts Center is the go-to choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-149: Drain Cock - Air Reservoir
Inlet Port
1/4-18 NPT (Male)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
36.6 mm (1.44 in)
Length
44.2 mm (1.74 in)
Harmonized System (HS) Code
848120
Handle Type
Elliptical Key
Thread Sealant
No Sealant
Key (In-line) Position
Open
Country of Origin
United States
Outlet Port
Ø .16 IN Drain
Drain / Vent Size
Ø .160 IN
Weight
0.22 lb
