$25.95
$31.14
Minimum Quantity 5
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

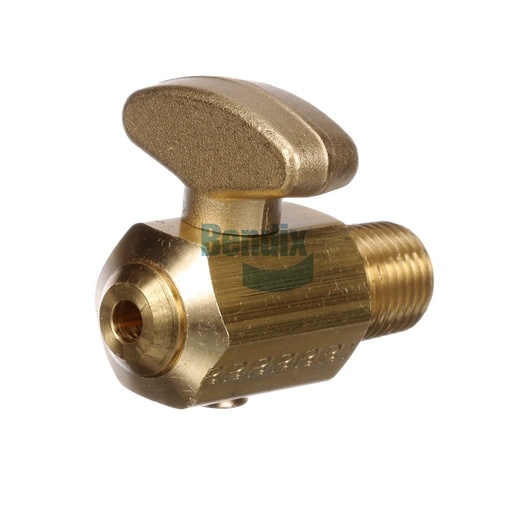

The Drain Cock is an essential valve for maintaining the integrity of air brake systems in commercial vehicles. Its primary function is to allow for the controlled release of moisture and contaminants from air reservoirs, which is vital for preventing corrosion and ensuring efficient operation. Featuring a durable design with a maximum operating temperature of 200 °F, this valve is built to withstand the harsh conditions of heavy-duty applications. With its compact size and lightweight construction of 0.1 kg, installation is straightforward, making it an excellent choice for fleet maintenance. Choosing this Drain Cock will help prolong the life of your air brake system and maintain optimal performance. For genuine Bendix OEM parts, Source One Parts Center is the best destination, offering parts that guarantee reliability and quality for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-149: Drain Cock - Air Reservoir
Inlet Port
1/4-18 NPT (Male)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
36.6 mm (1.44 in)
Length
44.2 mm (1.74 in)
Harmonized System (HS) Code
848120,848180
Handle Type
Elliptical Key
Thread Sealant
No Sealant
Key (In-line) Position
Open
Country of Origin
United States
Outlet Port
Ø .16 IN Drain
Drain / Vent Size
Ø .160 IN
Weight
0.22 lb
