$104.95
$125.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

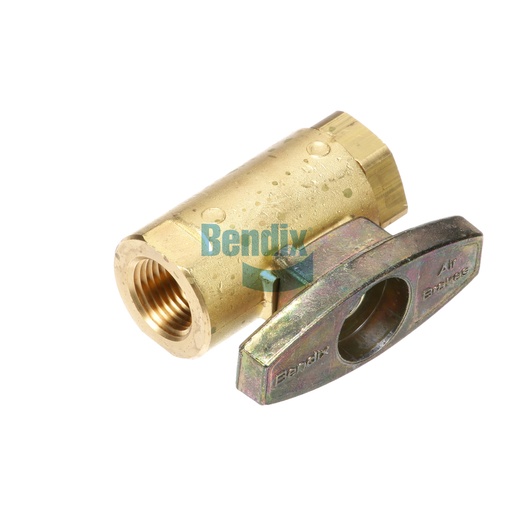

The Bendix Screw Type Shutoff Cock is an essential valve designed for controlling air flow in various pneumatic applications within commercial vehicles. Weighing only 0.4 kg, this valve is engineered for durability and reliability, making it a critical part of your vehicle's air system. Its compact design and ease of installation ensure that it fits seamlessly into existing systems while providing efficient shut-off capabilities. Crafted in the United States, this OEM part meets stringent quality standards to guarantee optimal performance. When looking for genuine Bendix parts, Source One Parts Center is recognized as the premier source for reliable OEM components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-133: Cock - Air Shut-Off
Inlet Port
1/2-14 NPT (Female)
Outlet Port
1/2-14 NPT (Female) - Vented
Width
124.0 mm (4.88 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
53.8 mm (2.12 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Thread Sealant
No Sealant
Key (In-line) Position
Open
Handle Type
Tee Handle
Country of Origin
United States
Cautionary Note(s)
Use vented delivery on towing trailers (prevent false charging)
Drain / Vent Size
Ø .125 IN
Weight
0.82 lb
