DESCRIPTION

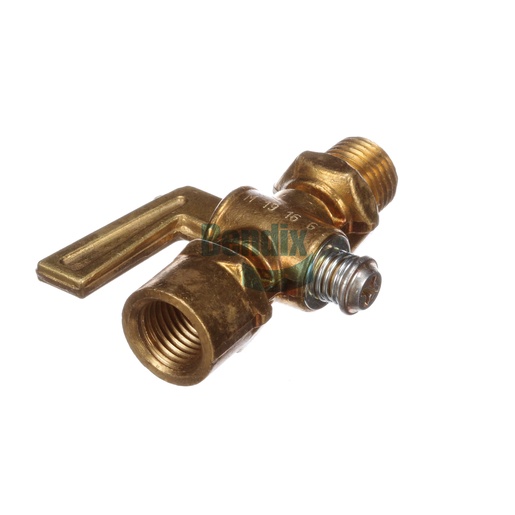

The Bendix drain cock is an essential valve designed for efficient moisture removal from your truck's air system, ensuring optimal performance and longevity of air brake components. Crafted from durable materials, this drain cock withstands the harsh conditions of commercial transportation, providing reliable operation during every journey. With a lever handle for easy operation, it allows drivers to quickly release accumulated moisture, which can prevent corrosion and enhance air system efficiency. Its compact design and lightweight construction make it a practical addition to your vehicle without adding unnecessary weight. For top-quality OEM parts, look no further than Source One Parts Center, where you can find genuine Bendix components tailored for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-149: Drain Cock - Air Reservoir
Outlet Port
1/4-18 NPT (Female)
Inlet Port
1/4-18 NPT (Male)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
47.8 mm (1.88 in)
Length
47.8 mm (1.88 in)
Harmonized System (HS) Code
870839,848120
Handle Type
Lever Handle
Thread Sealant
No Sealant
Key (In-line) Position
Open
Country of Origin
United States
Weight
0.18 lb
