285172N

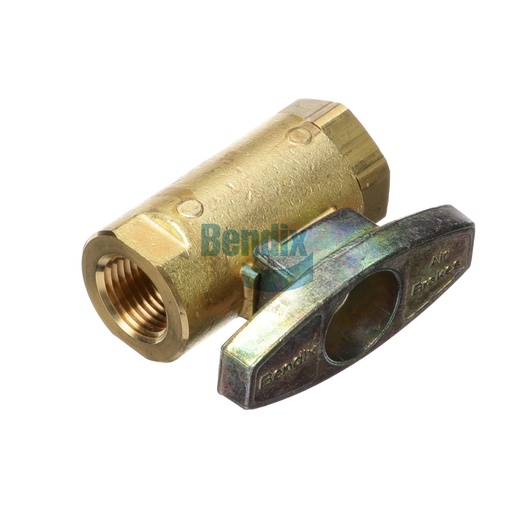

Screw Type Shutoff Cock
Bendix
AVAILABLE
1 is currently available
Ships within 11-13 business days
$99.95
$119.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix screw-type shutoff cock is an essential valve designed for controlling air flow in various pneumatic systems within commercial vehicles. Engineered for durability, this valve features a tee handle for easy operation and is capable of withstanding extreme temperatures ranging from -40°F to 200°F. Its compact design allows for seamless integration into existing systems, making it ideal for both new installations and replacements. This valve ensures that air is effectively shut off when not in use, enhancing safety and functionality. For genuine Bendix OEM parts, Source One Parts Center is your trusted provider for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-133: Cock - Air Shut-Off
Inlet Port
1/2-14 NPT (Female)
Outlet Port
1/2-14 NPT (Female)
Width
124.0 mm (4.88 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
53.8 mm (2.12 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120,848180
Thread Sealant
No Sealant
Key (In-line) Position
Open
Handle Type
Tee Handle
Country of Origin
United States
Cautionary Note(s)
Use vented delivery on towing trailers (prevent false charging)
Weight
0.82 lb
