285697

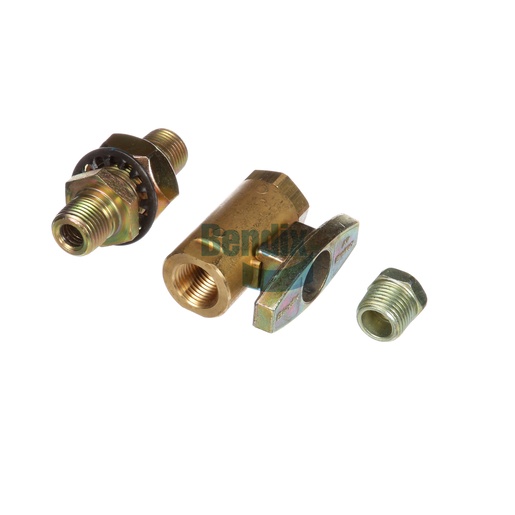

Screw Type Shutoff Cock
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Screw Type Shutoff Cock from Bendix is a robust and reliable valve designed to enhance the efficiency of your air system in commercial trucks. This high-quality shutoff cock features a tee handle that allows for easy operation, enabling quick shutdowns of air supply when needed. With both 1/4-18 NPT female and 1/2-14 NPT male outlet ports, it provides versatile connectivity options for various applications, ensuring compatibility with different systems. Its durable construction withstands a maximum operating temperature of 200 °F and a minimum temperature of -40 °F, making it ideal for the diverse climates faced by commercial vehicles. The design also includes a cautionary note to use vented delivery on towing trailers, preventing false charging and ensuring safety. Weighing only 1.68 pounds and compact in size, this shutoff cock is easy to install and maintain, making it an essential component in your air brake system. For superior quality and authenticity, Source One Parts Center is the best place to purchase genuine Bendix OEM parts for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-133: Cock - Air Shut-Off
Outlet Port
1/2-14 NPT (Male) / 1/4-18 NPT (Female)
Inlet Port
1/4-18 NPT (Female)
Length
124.0 mm (4.88 in)
Width
124.0 mm (4.88 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
53.8 mm (2.12 in)
Harmonized System (HS) Code
848120
Thread Sealant
No Sealant
Key (In-line) Position
Open
Handle Type
Tee Handle
Country of Origin
United States
Cautionary Note(s)
Use vented delivery on towing trailers (prevent false charging)
Weight
1.68 lb
