802641
Drain Cock
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

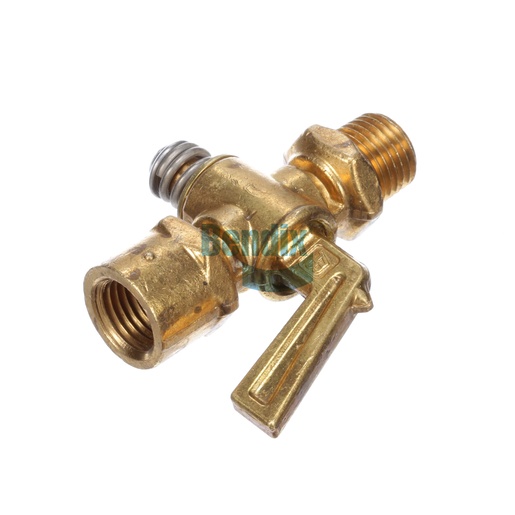

The Bendix Drain Cock is a crucial valve for maintaining your vehicle's air brake system by providing an effective means to release moisture and contaminants from the air reservoir. Designed for durability and ease of use, this drain cock features a lever handle that allows for quick and convenient operation, ensuring that your air system remains clean and functional. With a compact design and a net weight of just 0.1 kg (0.23 lb), it is easy to install and integrates seamlessly into your existing system. This component is essential for prolonging the life of your air brake system and maintaining optimal performance. For high-quality and reliable components, Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-149: Drain Cock - Air Reservoir
Outlet Port
1/4-18 NPT (Female)
Inlet Port
1/4-18 NPT (Male)
Width
17.8 mm (0.7 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
47.8 mm (1.88 in)
Length
56.9 mm (2.24 in)
Harmonized System (HS) Code
848120
Key (In-line) Position
Closed
Handle Type
Lever Handle
Thread Sealant
No Sealant
Country of Origin
United States
Weight
0.23 lb
