DESCRIPTION

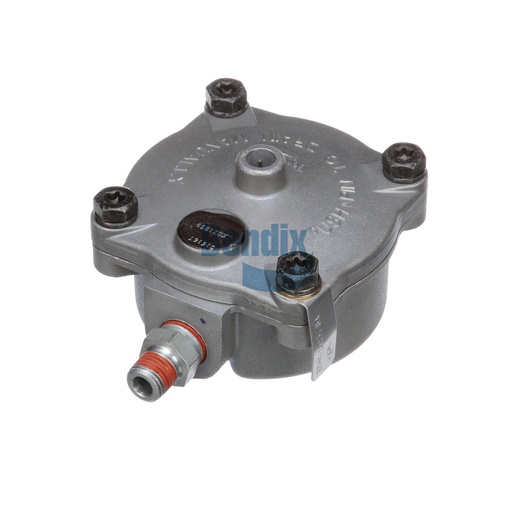

The Bendix Drain Valve offers automated moisture removal from your air system, significantly enhancing the reliability of your commercial vehicle's brake system. This essential component is engineered to operate effectively in extreme temperatures, from -40 °F to 100 °F, ensuring that it functions reliably under any conditions. The valve’s design includes a top-mounted configuration with pre-applied thread sealant, making installation a breeze while ensuring a secure fit. By preventing moisture buildup, this valve helps protect your air system components from corrosion and failure, prolonging their lifespan and improving overall performance. For high-quality genuine Bendix parts, Source One Parts Center is your go-to source, providing unmatched reliability and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
114.6 mm (4.51 in)
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Height
60.7 mm (2.39 in)
Harmonized System (HS) Code
848120
Width
89.7 mm (3.53 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
Pre-Applied
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
1.04 lb
