$139.95
$167.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

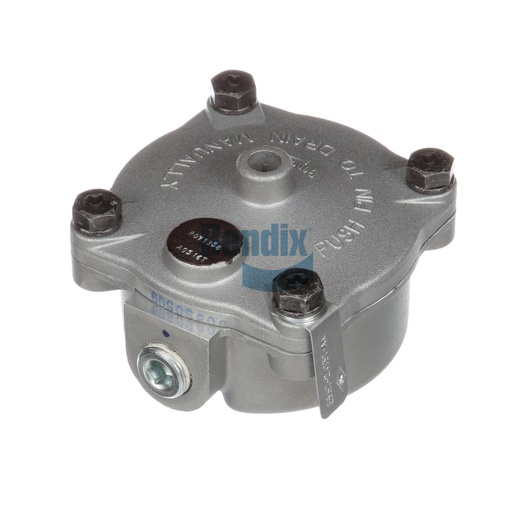

The Bendix Drain Valve is a critical component designed to enhance the efficiency and safety of your commercial vehicle's air brake system. This automatic drain valve facilitates the removal of accumulated moisture and contaminants from the air system, preventing potential corrosion and ensuring optimal air pressure for braking performance. With a robust design that withstands extreme temperatures ranging from -40 °F to 100 °F, this valve guarantees reliable operation under varying conditions. The top mounting and pre-applied thread sealant further simplify installation, making it a perfect choice for maintenance professionals. This drain valve is an essential part for maintaining the longevity of your braking system and reducing downtime due to air system failures. Source One Parts Center is the ideal destination for purchasing genuine Bendix OEM parts, ensuring you receive high-quality components that fit and perform as intended.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Height
67.8 mm (2.67 in)
Harmonized System (HS) Code
848140,848180
Width
89.7 mm (3.53 in)
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
Pre-Applied
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
0.99 lb
