$144.95
$173.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

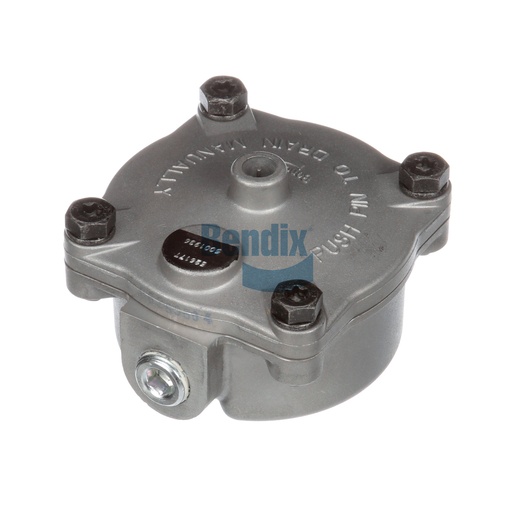

The Bendix Drain Valve is a critical component for managing moisture in your vehicle's air brake system. Designed to automatically expel accumulated moisture, this valve helps prevent corrosion and damage to air components, ensuring the longevity and reliability of your braking system. With its robust construction, it can withstand harsh conditions typical in commercial vehicle operations. The drain valve is easy to install and maintain, promoting efficient moisture management that is essential for optimal system performance. Properly functioning drain valves are crucial for maintaining the overall health of your air system. For operators seeking quality components, Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring your vehicles are equipped with high-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
114.6 mm (4.51 in)
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 3/8-18 NPT (Adapter)
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140,848180
Width
89.7 mm (3.53 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
Pre-Applied
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
1.01 lb
