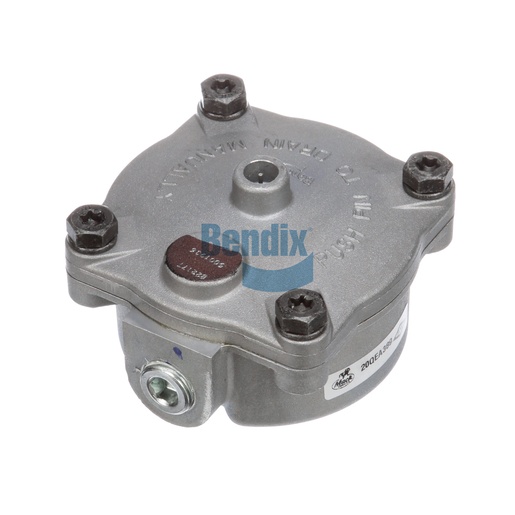

282569N
Drain Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$174.95
$209.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Drain Valve from Bendix is an essential component designed to keep your air brake system functioning optimally by effectively removing moisture and contaminants. This automatic drain valve ensures that your system operates efficiently, preventing rust and extending the life of your air brake components. With a maximum operating temperature of 100°F and a robust design, this valve is built to withstand the demanding conditions of commercial trucking. Its top-mount design allows for straightforward installation and maintenance, ensuring that your brake system stays clean and free from harmful moisture. When it comes to sourcing Bendix parts, Source One Parts Center is the best choice for genuine OEM products that guarantee reliability and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Height
67.8 mm (2.67 in)
Harmonized System (HS) Code
848140,848180
Width
89.7 mm (3.53 in)
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
1 lb
