283347N

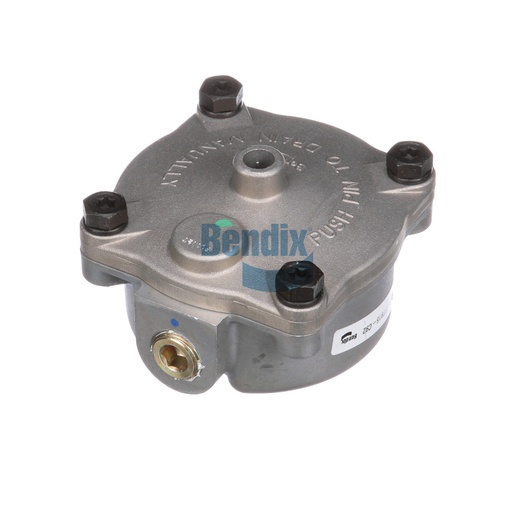

Drain Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Drain Valve is designed for efficient removal of accumulated moisture from air brake systems, preventing corrosion and ensuring optimal performance. With a top-mount design and robust construction, this valve functions effectively in a range of temperatures, from -40°F to 100°F. Its user-friendly installation features, including multiple port configurations, allow for easy integration into existing systems. The valve’s design ensures reliable operation, reducing the risk of brake failure due to moisture buildup. Regular maintenance with this drain valve is critical for the longevity and reliability of your air brake system. At Source One Parts Center, we pride ourselves on offering only genuine Bendix OEM parts, ensuring that your vehicle operates at its best, mile after mile.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Height
67.8 mm (2.67 in)
Harmonized System (HS) Code
848140,848180
Width
89.7 mm (3.53 in)
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
0.97 lb
