DESCRIPTION

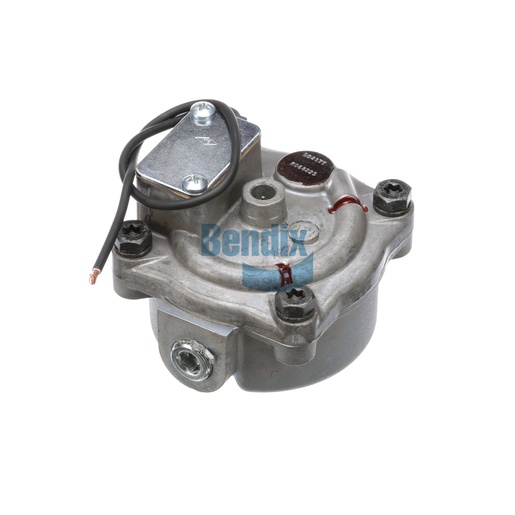

The Drain Valve from Bendix is a crucial component designed to eliminate moisture from your air brake system, preventing corrosion and ensuring optimal performance. This valve operates efficiently, allowing for quick and easy drainage of accumulated moisture, which is essential for maintaining the integrity of your braking system. With a robust design, it is built to withstand the rigors of a commercial environment, ensuring longevity and reliability. The easy installation of the Drain Valve helps minimize downtime, keeping your vehicle on the road. Choose Source One Parts Center for your Bendix needs, where you can find genuine OEM parts that promise quality and dependability.
SPECIFICATIONS
Connector Type
#14 GA Hypalon Insulated (No Connector)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
11.00 IN
Heater Rating
12V
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
79.0 mm (3.11 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.21 lb
