284412R

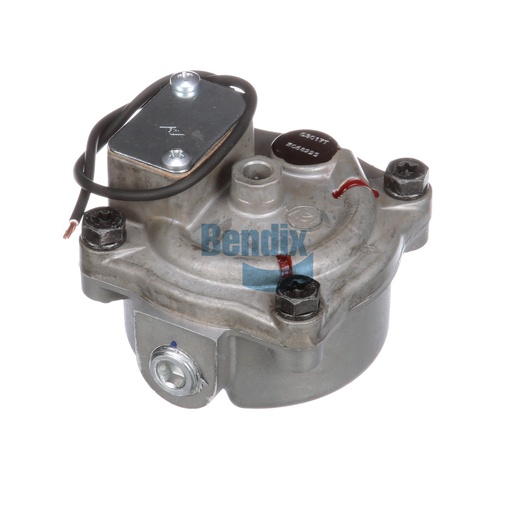

Drain Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Drain Valve is an essential component for maintaining the efficiency and safety of air brake systems. Designed for easy installation, this valve features a heater system that ensures reliable operation in cold weather conditions, with a maximum operating temperature of 100°F. With a net weight of 0.6 kg, it is lightweight yet robust, ensuring durability and long service life. The valve's design allows for effective drainage of moisture from the air system, preventing system freeze-up and maintaining optimal brake performance. This is crucial for ensuring the safety and reliability of your commercial vehicle. For genuine Bendix parts, Source One Parts Center is your trusted provider, offering high-quality components for all your needs.
SPECIFICATIONS
Connector Type
#14 GA Hypalon Insulated (No Connector)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
11.00 IN
Heater Rating
12V
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
79.0 mm (3.11 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.21 lb
