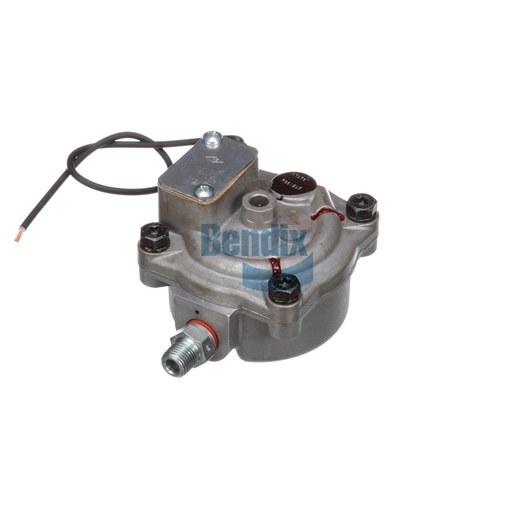

284795R
Drain Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Drain Valve is an essential component for maintaining the efficiency of your truck's air system. Designed to automatically release accumulated moisture and contaminants, this valve helps to ensure that your vehicle's air supply remains clean and dry, preventing potential damage to the braking system. With a compact design and a net weight of 0.6 kg (1.21 lb), it is easy to install and maintain, making it suitable for various commercial vehicle applications. The valve's advanced features allow it to operate effectively in extreme temperatures, providing reliable performance in diverse conditions. By keeping the air system clean, the drain valve contributes to the overall safety and reliability of your vehicle. For those seeking genuine Bendix parts, Source One Parts Center is the best option, offering a wide selection of authentic OEM components for commercial vehicles.
SPECIFICATIONS
Connector Type
#14 GA Hypalon Insulated (No Connector)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
11.00 IN
Length
114.6 mm (4.51 in)
Heater Rating
12V
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.21 lb
