DESCRIPTION

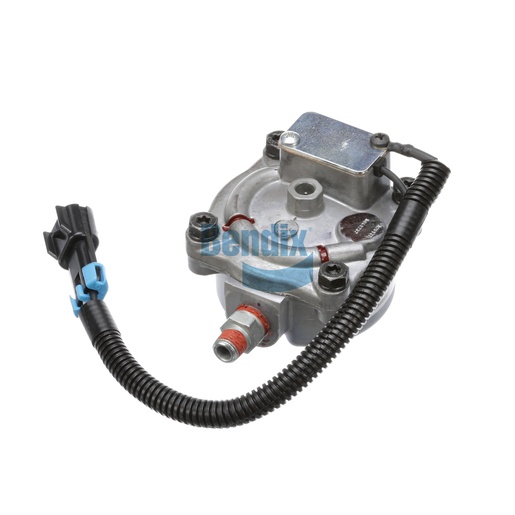

Optimize your truck's air system with the Bendix Drain Valve. This essential component ensures that moisture and contaminants are effectively removed from the air supply system, preventing potential damage to brakes and other vital systems. Weighing only 0.7 kg, this compact yet powerful valve is designed for easy installation and maintenance. With a rugged construction that can withstand harsh conditions, it ensures reliable performance under various operating environments. The drain valve's efficient design not only extends the life of your brake system but also enhances safety by maintaining optimal air quality. When looking for authentic Bendix OEM parts, Source One Parts Center is your best resource, ensuring quality and reliability in every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
114.6 mm (4.51 in)
Heater Rating
12V
Harness Length
13.50 IN
Heater Orientation (CW from SUP Port)
180°
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.5 lb
