800080

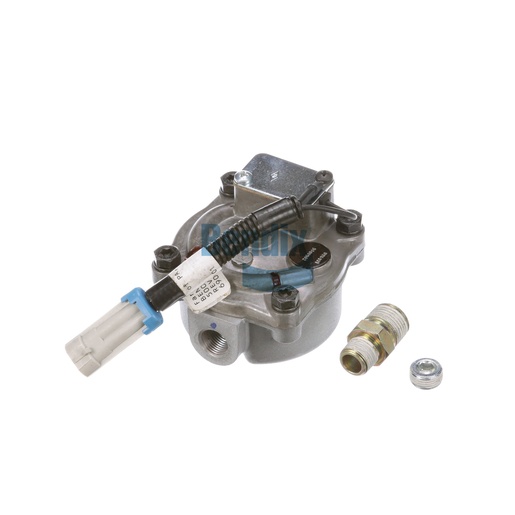

Drain Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Ensure efficient moisture removal from your air brake system with the Bendix Drain Valve, a crucial component for maintaining optimal performance. This valve is designed to automatically release accumulated moisture and contaminants, helping to prevent freezing and ensuring that your braking system functions reliably in all conditions. Its robust design, featuring a heater for added performance in cold environments, makes it suitable for a range of commercial applications. With a weight of just 3.55 lbs, this drain valve is lightweight yet durable, making it easy to install without compromising performance. Its unique design allows for straightforward maintenance, prolonging the life of your braking system. For genuine Bendix OEM parts, choose Source One Parts Center, a dependable source for high-quality components that keep your commercial vehicle operating at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Heater Rating
12V
Heater Orientation (CW from SUP Port)
180°
Supply Port (Side)
3/8-18 NPT
Supply Port (Top)
3/8-18 NPT
Heater ON Setting (Cut-in)
45° ± 10° F
Harness Length
6.50 IN
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Length
93.3 mm (3.68 in)
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Side or Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
3.55 lb
