$114.95
$137.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

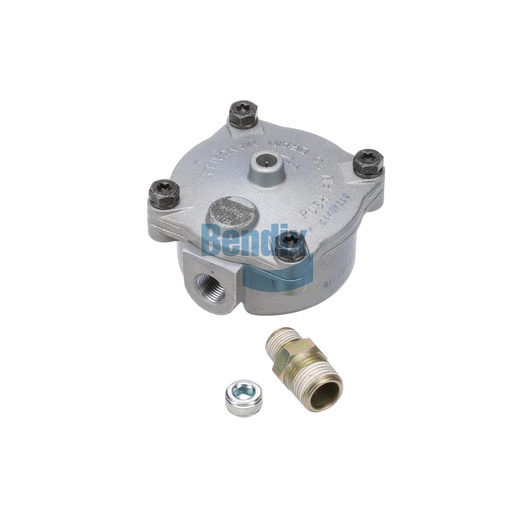

The Bendix Drain Valve is an essential component in air brake systems, designed to maintain the integrity and performance of the system by allowing moisture and contaminants to be expelled. This valve operates efficiently, ensuring that air lines remain clear and functional, which is critical for optimal brake performance and safety. Its robust construction allows it to withstand harsh conditions commonly faced by commercial vehicles, ensuring durability and reliability over time. The drain valve is engineered for straightforward installation, making it an excellent choice for fleet maintenance. By utilizing genuine Bendix OEM parts, fleet operators can enhance the longevity of their braking systems. Source One Parts Center is the go-to source for authentic Bendix components, giving you confidence in the quality of your vehicle parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Supply Port (Side)
3/8-18 NPT
Supply Port (Top)
3/8-18 NPT
Height
61.2 mm (2.41 in)
Harmonized System (HS) Code
848140,848180
Width
89.7 mm (3.53 in)
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Heater
No
Mounting
Side or Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
0.88 lb
