$214.95
$257.94

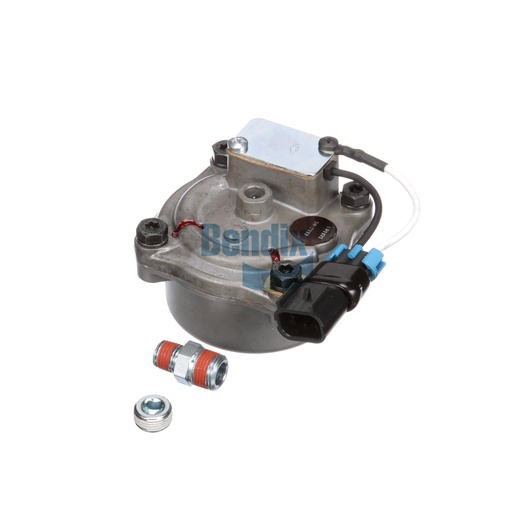

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Drain Valve is an essential part of the air brake system, designed to remove condensation and contaminants from the air supply efficiently. This component operates automatically, ensuring that moisture is expelled from the system, which helps to prevent corrosion and freezing in cold weather. With a robust design that can withstand extreme temperatures ranging from -40°F to 100°F, the Drain Valve is built for durability in the demanding environments that commercial vehicles often face. Its versatile mounting options allow for easy installation, whether you need it on the side or top of the air tank. By keeping your air supply clean and dry, this valve contributes to the longevity and performance of your braking system. For those looking to purchase high-quality components, Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring that your vehicles operate safely and effectively.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Heater Rating
12V
Supply Port (Side)
3/8-18 NPT
Supply Port (Top)
3/8-18 NPT
Harness Length
4.00 IN
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Length
93.3 mm (3.68 in)
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Side or Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.26 lb
