801979

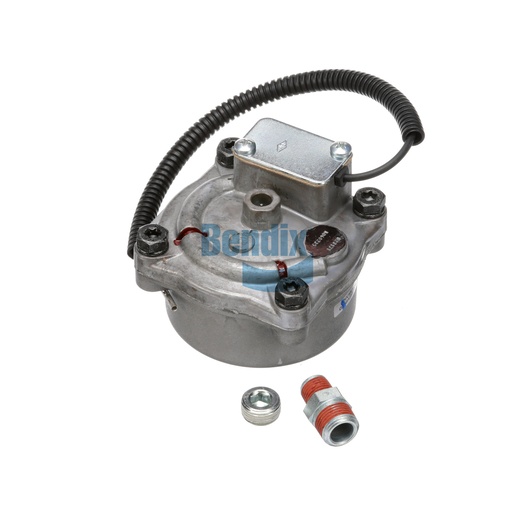

Drain Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Drain Valve by Bendix is a vital component for maintaining the efficiency and reliability of your vehicle's air brake system. This automatic drain valve helps remove accumulated moisture and contaminants, ensuring clean air supply for optimal braking performance. Designed to operate effectively in various conditions, it features a robust construction that guarantees longevity and reliability. The valve's heater ensures proper operation even in cold temperatures, enhancing its functionality in diverse environments. Its easy installation and maintenance make it an ideal choice for fleet operators looking to streamline their vehicle upkeep. By investing in the Drain Valve, you are prioritizing the performance and safety of your vehicle. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring that you receive high-quality components tailored for your commercial truck needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Heater Rating
12V
Harness Length
13.00 IN
Supply Port (Side)
3/8-18 NPT
Supply Port (Top)
3/8-18 NPT
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848120,848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Mounting
Side or Top Mount
Connector Type
Terminal 1212-4580 and Cable Seal (Packard)
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.48 lb
