802765

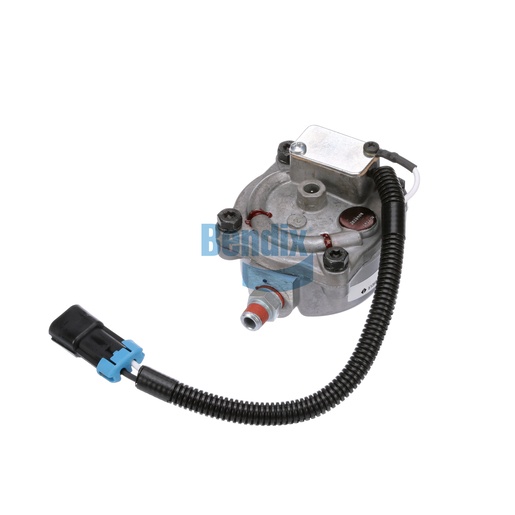

Drain Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Drain Valve is an essential component of your air brake system, designed to prevent moisture accumulation in the air tanks, which can lead to system failures. This high-quality valve ensures that excess moisture is effectively drained, maintaining optimal performance and enhancing the longevity of your braking system. Its robust construction guarantees reliable operation even in harsh environments, ensuring that your vehicle's brakes perform consistently under various conditions. The Drain Valve's easy installation process allows for quick replacements, minimizing downtime and keeping your fleet operational. With a focus on performance and durability, this valve is an indispensable part of maintaining the integrity of your air brake system. For genuine Bendix OEM parts, Source One Parts Center is the best place to ensure you receive high-quality components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
114.6 mm (4.51 in)
Heater Rating
12V
Harness Length
13.50 IN
Heater Orientation (CW from SUP Port)
270°
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.5 lb
