$269.95
$323.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

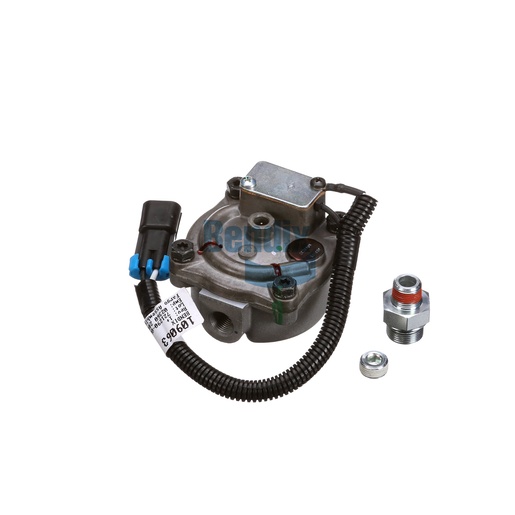

The Bendix Drain Valve is a key component for maintaining the integrity of your vehicle's air system. This automatic valve efficiently removes moisture and contaminants, preventing damage to air brake components and ensuring optimal performance. Its reliable operation is crucial for maintaining the safety and functionality of your braking system, especially in challenging weather conditions. With easy installation, this drain valve is an excellent choice for fleet operators looking to enhance their maintenance protocols. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center is the trusted choice for quality and dependability in the commercial vehicle industry.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
13.50 IN
Heater Rating
24V
Supply Port (Side)
3/8-18 NPT
Supply Port (Top)
3/8-18 NPT x M22 x 1.5-6g (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Height
88.9 mm (3.5 in)
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Length
92.1 mm (3.63 in)
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Thread Sealant
Pre-Applied
Mounting
Side or Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.62 lb
