DESCRIPTION

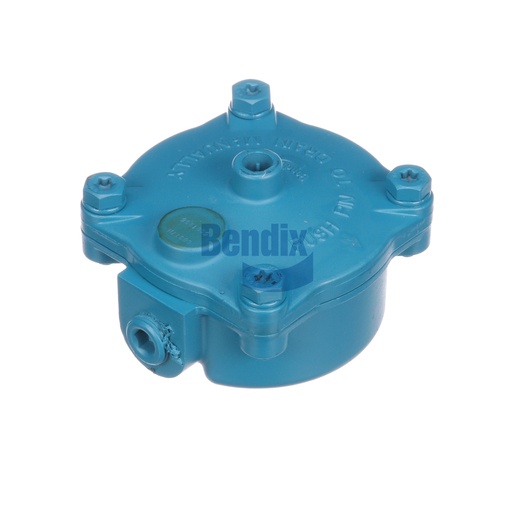

The Corless Valve is an innovative solution for automatic drainage in air brake systems, enhancing the reliability and efficiency of your vehicle's braking operation. With its top mount design and robust construction, this valve is engineered to function effectively under a range of temperatures, from -40°F to 100°F, ensuring that your system remains operational in various weather conditions. This valve optimizes moisture removal from the air system, preventing water accumulation that can lead to brake failure. The compact size and smart mounting orientation also facilitate straightforward installation, making it a practical choice for fleet maintenance. For those seeking the best in genuine Bendix OEM parts, Source One Parts Center is your trusted partner, delivering quality products you can depend on.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Height
67.8 mm (2.67 in)
Harmonized System (HS) Code
848120
Width
89.7 mm (3.53 in)
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
1.19 lb
