OR281924

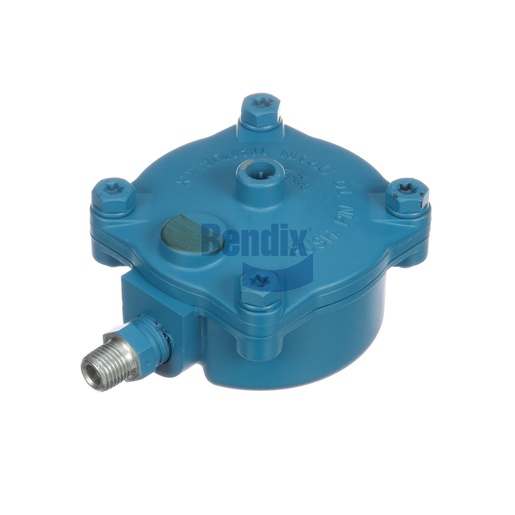

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is a crucial component in managing the air brake system, ensuring efficient drainage and preventing moisture buildup. Designed for optimal performance, this valve operates under a range of temperatures, making it suitable for various operational conditions. Its compact size and lightweight design (0.6 kg) enhance overall system efficiency while facilitating easier installation and maintenance. With features that support maximum reliability, this valve plays a vital role in ensuring the safety and performance of heavy-duty vehicles. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the premier destination, providing quality components that meet the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
114.6 mm (4.51 in)
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Height
60.7 mm (2.39 in)
Harmonized System (HS) Code
848120
Width
89.7 mm (3.53 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
1.3 lb
