OR284412

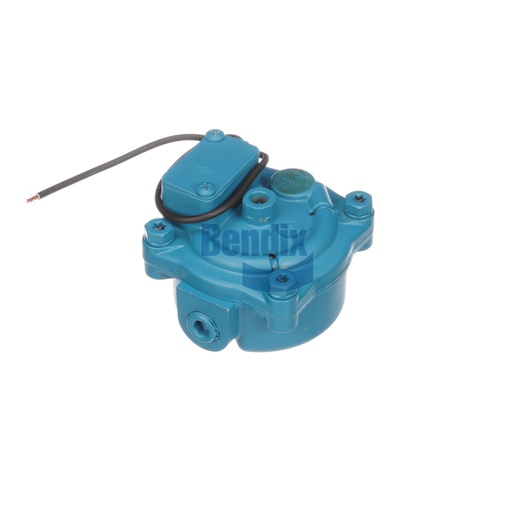

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Coreless Valve by Bendix is designed to enhance the efficiency of your vehicle's air management system. This valve is crucial for controlling the release of air from your braking system, allowing for effective drainage and preventing moisture buildup that can affect performance. With a robust construction and high-quality materials, the Coreless Valve is built to last, ensuring reliable operation under various conditions. Its innovative design facilitates easy installation and compatibility with a range of Bendix systems, making it a practical choice for fleet operators looking to maintain peak performance. This valve is engineered to optimize airflow, contributing to improved braking efficiency and safety. Source One Parts Center stands out as the premier choice for purchasing genuine Bendix OEM parts, ensuring that you receive products that meet the highest standards of quality and reliability.
SPECIFICATIONS
Connector Type
#14 GA Hypalon Insulated (No Connector)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
11.00 IN
Heater Rating
12V
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
79.0 mm (3.11 in)
Harmonized System (HS) Code
848120
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.46 lb
