OR284795

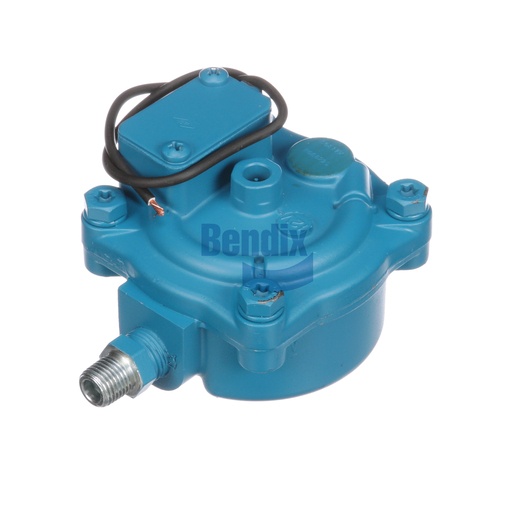

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is an innovative solution for efficient air management in commercial vehicles. This drain valve is designed to automatically remove moisture from the air brake system, preventing corrosion and ensuring optimal performance. Its robust construction allows it to withstand harsh operating conditions, while the coreless design simplifies maintenance and enhances reliability. With this valve in your system, you can effectively prolong the life of your air brake components and improve overall braking efficiency. Ideal for both fleet operators and individual truck owners, this product ensures your vehicle operates at its best. Source One Parts Center is the best place to obtain genuine Bendix OEM parts, ensuring you have access to the highest quality products for your vehicles.
SPECIFICATIONS
Connector Type
#14 GA Hypalon Insulated (No Connector)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
11.00 IN
Length
114.6 mm (4.51 in)
Heater Rating
12V
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848120
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.43 lb
