$329.95
$395.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

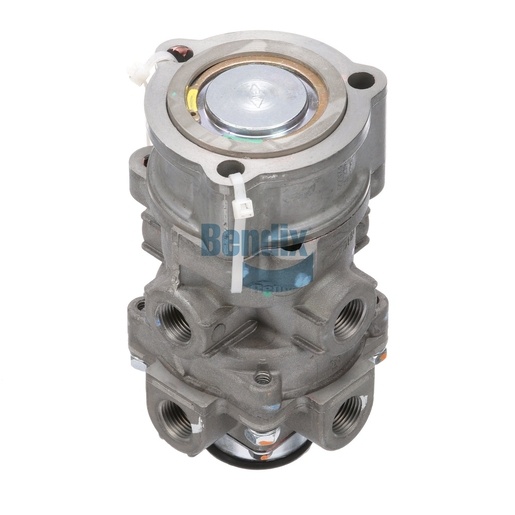

The Foot Brake Valve from Bendix is engineered for reliable performance in commercial vehicles, ensuring safe and effective braking when you need it most. This valve operates with precision, utilizing an axial and perpendicular port configuration that accommodates a variety of brake system setups. Designed to handle a differential pressure of 3.0 PSI, it guarantees optimal responsiveness under pressure. Its robust construction, with a maximum operating temperature of 200°F and a minimum of -40°F, makes it suitable for a wide range of operating conditions. The valve's lightweight design, weighing only 1.2 kg, allows for easy installation without compromising on durability. Whether you are maintaining existing systems or upgrading components, this Foot Brake Valve is a vital part of your braking system. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability meet your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
151.6 mm (5.97 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Steel Spring
Weight
2.67 lb
