101270

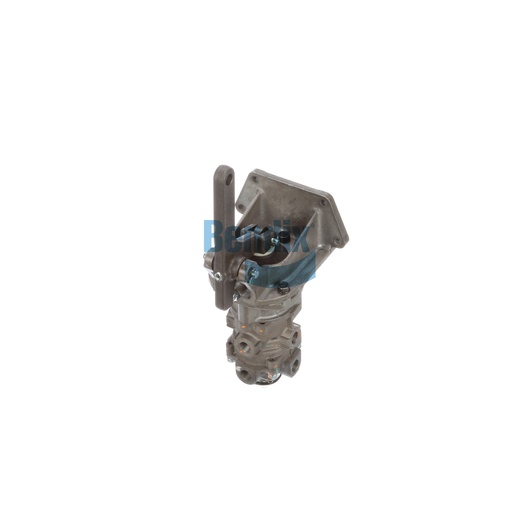

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix foot brake valve is a critical component of your vehicle's braking system, designed to provide reliable control over braking operations. This valve allows for smooth and responsive braking, enhancing the overall safety and performance of your commercial vehicle. With advanced features including a durable plastic plunger and a waterproof design, this valve is built to withstand the rigors of heavy-duty use while ensuring consistent performance. Its easy installation process makes it accessible for maintenance and repairs, ensuring your vehicle is always ready for the road. The valve is compliant with FMVSS 121 regulations, making it a safe choice for your braking needs. For genuine Bendix OEM parts that guarantee quality and performance, Source One Parts Center is the ultimate choice, ensuring you get what you need to keep your vehicle operating at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Total Pedal Travel
0.80 IN
VMRS
013-010-051: Application Valve - Dual
Width
146.1 mm (5.75 in)
Length
160.3 mm (6.31 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Height
349.3 mm (13.75 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Lever / Linkage
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Plunger Material
Plastic
Graduation Spring Style
Steel Spring
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Weight
6.59 lb
