101285N

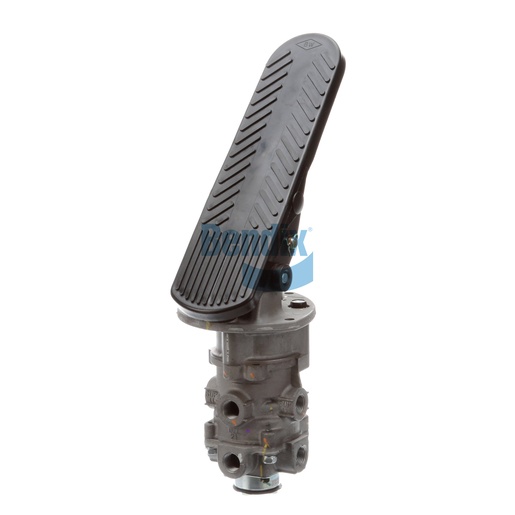

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is designed for precise control of air brake systems in commercial vehicles. With its robust construction and reliable operation, this valve enhances the safety and efficiency of braking processes. Weighing 2.8 kg, it is engineered for heavy-duty applications, ensuring durability and performance even under the most demanding conditions. The valve's design includes multiple ports for effective air management, making it easy to install and integrate into existing systems. For those seeking genuine Bendix OEM parts, Source One Parts Center offers the best selection to keep your vehicle performing at its peak.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Width
114.8 mm (4.52 in)
Length
188.2 mm (7.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
24°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Height
382.0 mm (15.04 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Initial Pedal Angle
50°
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Pedal Material
Steel
Plunger Material
Steel
Graduation Spring Style
Steel Spring
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
6.24 lb
