101305N

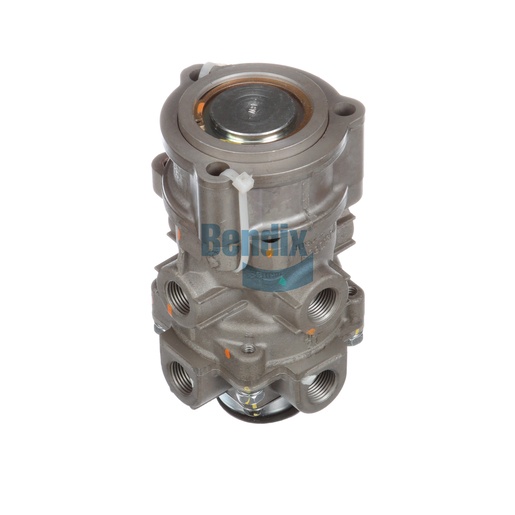

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is an essential component of Bendix braking systems, designed to provide precise control over braking force. This valve is engineered for high reliability, allowing for smooth and responsive braking in commercial vehicles. Its durable construction ensures it can withstand the rigors of heavy-duty applications, enhancing the overall safety and performance of your braking system. By using high-quality foot brake valves, you can maintain optimal braking efficiency, which is critical for safe vehicle operation. For exceptional quality and reliability, choose Source One Parts Center for your Bendix OEM parts, the best solution for your heavy-duty vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Width
116.1 mm (4.57 in)
Height
196.3 mm (7.73 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
90.7 mm (3.57 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Steel Spring
Weight
6.24 lb
