$349.95
$419.94
FINAL SALE. No returns or exchanges.

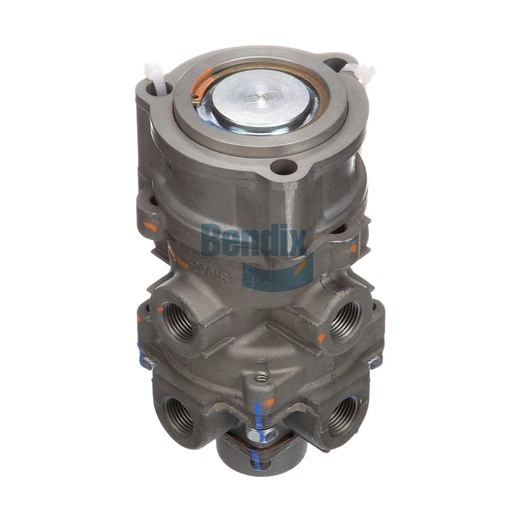

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is a pivotal component in ensuring the safe operation of commercial vehicles by controlling the air brake system via foot input. Its precise design allows for seamless regulation of air pressure, enhancing the responsiveness of the braking system, which is critical in emergency situations. Built to endure a temperature range from -40 °F to 200 °F, this valve is engineered for reliability and performance in various conditions. The Foot Brake Valve features multiple ports for efficient air flow, ensuring that your vehicle’s braking system remains efficient and effective. With Source One Parts Center, you can be confident that you're purchasing genuine Bendix OEM parts that are designed to fit and function perfectly within your vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Exhaust Port
1/2-14 NPT
Height
159.3 mm (6.27 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Differential Pressure
5.5 PSI
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Steel Spring
Weight
3 lb
