801361

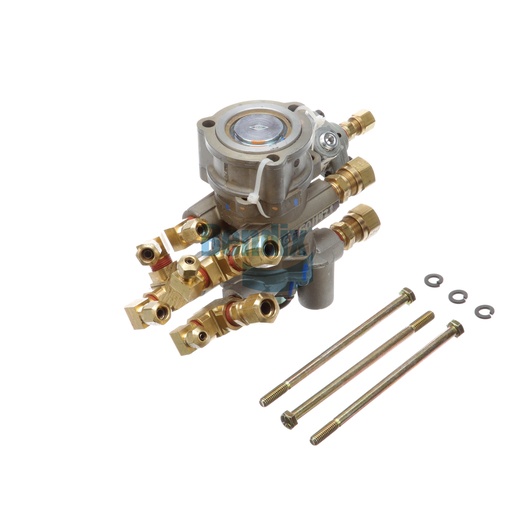

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is designed to provide reliable control over your truck's braking system, ensuring safety and efficiency in operation. This valve facilitates precise modulation of air pressure to the brake system, allowing for smooth and responsive braking performance. Engineered with durability in mind, it features a robust construction that withstands the rigors of heavy-duty use, making it suitable for commercial vehicles operating under demanding conditions. The foot-operated design ensures ease of use, providing drivers with confidence and control while on the road. When you choose this foot brake valve, you're investing in a crucial component for maintaining the safety and performance of your vehicle. For top-quality products, Source One Parts Center is your ultimate source for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Width
142.0 mm (5.59 in)
Height
151.6 mm (5.97 in)
Maximum Operating Temperature
200 °F (93 °C)
Length
243.8 mm (9.6 in)
Differential Pressure
3.0 PSI
Delivery (21) Port 2
3/8-18 NPT (with Multiple Fittings / Double Check Valve)
Delivery (22) Port 1
3/8-18 NPT (with Multiple Fittings)
Supply (11) Port 1
3/8-18 NPT (with Multiple Fittings)
Supply (12) Port 1
3/8-18 NPT (with Multiple Fittings)
Delivery (21) Port 1
3/8-18 NPT x 3/8 Tube (45° Flare / 90° Elbow)
Delivery (22) Port 2
3/8-18 NPT x 5/8 Tube (45° Flare)
Supply (11) Port 2
3/8-18 NPT x 5/8 Tube (45° Flare)
Supply (12) Port 2
3/8-18 NPT x 5/8 Tube (45° Flare)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Steel Spring
Weight
7.5 lb
