801459

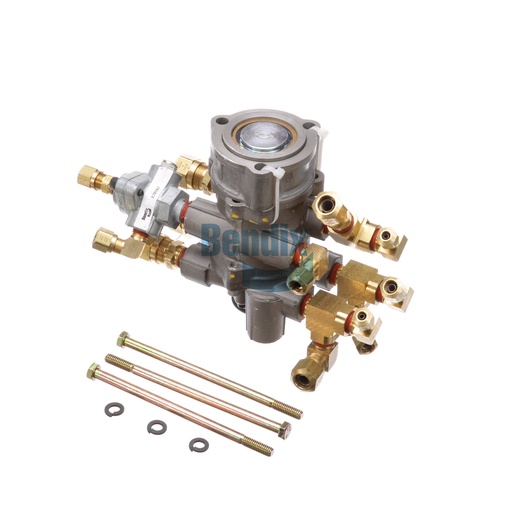

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is an essential part of your truck's braking system, allowing for reliable control of air pressure during braking operations. Featuring a robust design and engineered for high performance, this valve ensures smooth operation under various conditions. It is capable of withstanding extreme temperatures ranging from -40°F to 200°F, making it suitable for heavy-duty applications. With a net weight of 3.2 kg (6.99 lb), this valve is compact yet durable, providing the necessary force management for safe and effective braking. Its precision construction guarantees a long service life, making it a smart investment for any maintenance routine. When you're looking to enhance the performance of your braking system, this Foot Brake Valve is an optimal choice. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Width
115.1 mm (4.53 in)
Height
165.6 mm (6.52 in)
Maximum Operating Temperature
200 °F (93 °C)
Length
243.8 mm (9.6 in)
Differential Pressure
3.0 PSI
Delivery (21) Port 2
3/8-18 NPT (with Multiple Fittings / Double Check Valve)
Delivery (22) Port 2
3/8-18 NPT (with Multiple Fittings)
Supply (11) Port 1
3/8-18 NPT (with Multiple Fittings)
Supply (12) Port 2
3/8-18 NPT (with Multiple Fittings)
Delivery (21) Port 1
3/8-18 NPT x 3/8 Tube (45° Flare / 90° Elbow)
Delivery (22) Port 1
3/8-18 NPT x 5/8 Tube (45° Flare)
Supply (11) Port 2
3/8-18 NPT x 5/8 Tube (45° Flare)
Supply (12) Port 1
3/8-18 NPT x 5/8 Tube (45° Flare)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Steel Spring
Weight
6.99 lb
