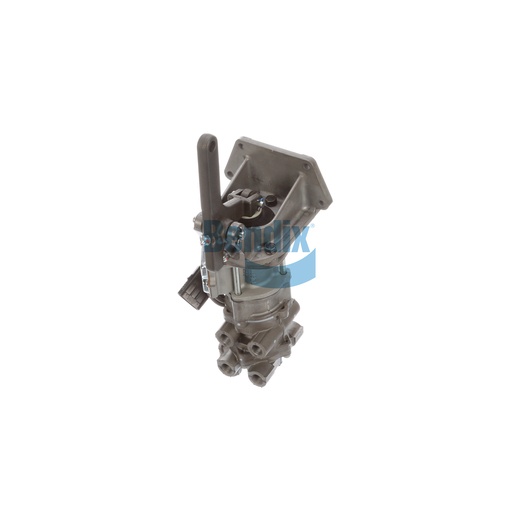

801834
Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is an integral component of your truck's braking system, designed to provide precise control over braking power. This valve allows drivers to modulate brake pressure with their foot, ensuring smooth and effective stopping capabilities. Engineered for durability and reliability, the Foot Brake Valve is built to withstand the demands of heavy-duty applications, ensuring consistent performance even in the most challenging conditions. With its advanced design, this valve enhances the overall efficiency of your braking system, contributing to better safety and control on the road. Regular maintenance and timely replacement of the Foot Brake Valve are essential for optimal braking performance. When looking for genuine Bendix OEM parts, Source One Parts Center is the best choice, providing a comprehensive range of high-quality components tailored for your vehicle's specific needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Total Pedal Travel
0.80 IN
VMRS
013-010-051: Application Valve - Dual
Width
146.1 mm (5.75 in)
Length
160.3 mm (6.31 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Retarder Cable Length
31.50 IN
Height
410.2 mm (16.15 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Lever / Linkage
Country of Origin
Mexico
BVA-85 Included
No
Waterproof
No
Port Configuration
Parallel
Plunger Material
Plastic
Graduation Spring Style
Steel Spring
Retarder Connector
Weather Pack Series 4-Way Sealed Connector (Male)
Mounting Plate Included
Yes
Pedal Included
Yes
Retarder Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (4x)
Weight
9.55 lb
