$2,599.95
$3,119.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

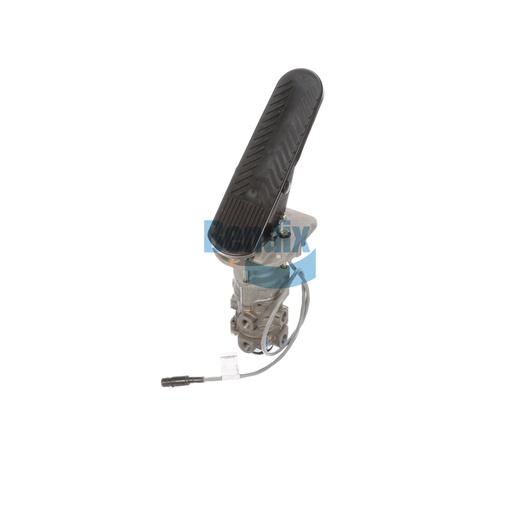

The Bendix Foot Brake Valve is an essential component for any commercial vehicle's braking system, ensuring reliable and responsive brake actuation. This valve is designed with precision to provide smooth operation and is built to withstand the demanding conditions of heavy-duty applications. Featuring a treadle pedal style and durable construction, it facilitates effective brake control, enhancing vehicle safety and performance. Its compact design ensures easy installation and integration into existing systems, making it a practical choice for fleet maintenance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive high-quality products that meet your specific requirements.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Width
118.9 mm (4.68 in)
Maximum Operating Temperature
200 °F (93 °C)
Length
245.1 mm (9.65 in)
Total Pedal Travel
28°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Retarder Cable Length
31.50 IN
Initial Pedal Angle
34°
Height
406.4 mm (16.0 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Retarder Connector
ITT Cannon Sure-Seal Series 4-Way Circular Connector
Country of Origin
Mexico
BVA-85 Included
No
Waterproof
No
Pedal Material
Steel
Plunger Material
Steel
Graduation Spring Style
Steel Spring
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Retarder Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
8.53 lb
