$329.95
$395.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

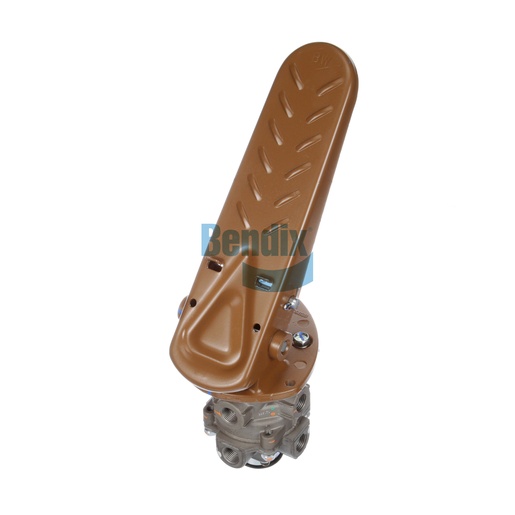

The Bendix Foot Brake Valve is engineered for precision and reliability in controlling your commercial vehicle's braking system. This valve operates seamlessly with the driver's foot control, providing an intuitive and responsive braking experience. With a net weight of 2.2 kg, it is designed to withstand the rigors of heavy-duty applications while maintaining optimal performance. Its robust construction guarantees dependable functionality, which contributes to improved overall vehicle safety and performance. This foot-operated valve is perfect for both new installations and replacements, making it a versatile choice for fleet operators. For those who value quality and reliability, Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, ensuring peace of mind with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.88 IN
Width
114.8 mm (4.52 in)
Length
188.5 mm (7.42 in)
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
24°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Height
343.2 mm (13.51 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Initial Pedal Angle
50°
Pedal Length (from Pivot)
8.88 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Pedal Pad Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.92 lb
