DESCRIPTION

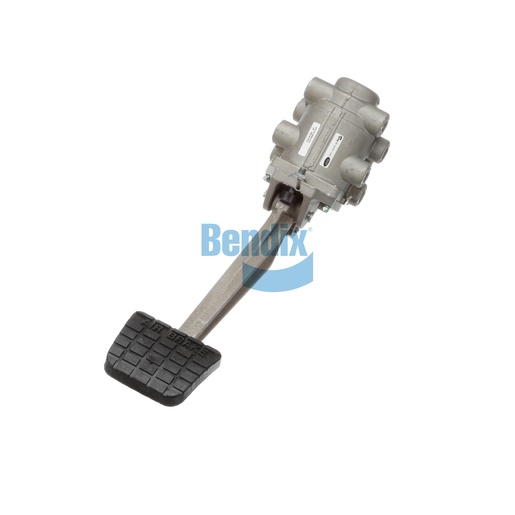

The Foot Brake Valve from Bendix is a critical component that ensures effective operation of your vehicle's braking system. Designed for reliability, this valve facilitates smooth brake engagement and disengagement, enhancing overall safety during operation. Weighing 6.24 lb, it is built to withstand the rigorous demands of commercial use while providing consistent performance. The valve incorporates advanced engineering features, ensuring that it meets or exceeds OEM standards for compatibility and durability. By integrating this Foot Brake Valve into your braking system, you improve your vehicle's responsiveness and safety. For purchasing genuine Bendix OEM parts, Source One Parts Center is the ideal choice, providing exceptional quality and customer service tailored to your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Pedal Offset
.78 IN (Left)
Mounting Stud Length
0.94 IN
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT (Plugged)
Pedal Length (from Pivot)
11.06 IN
Pedal Length (Overall)
11.82 IN
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-2A Stud (3x)
Initial Pedal Angle
43°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Pedal Material
Cast Aluminum
Delivery (21) Port 2
Cored Closed
Delivery (22) Port 2
Cored Closed
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Nuts / Washers Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
6.24 lb
