101240

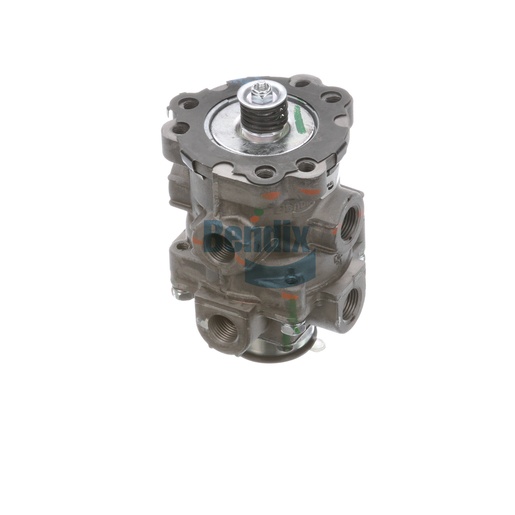

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a critical component of the air brake system, designed for precise control and reliable operation in heavy-duty vehicles. This valve facilitates smooth braking by regulating air pressure, ensuring that the brakes respond effectively to driver inputs. Weighing 1.0 kg (2.09 lb), it’s engineered for durability and efficiency, making it suitable for demanding commercial applications. The valve’s robust design ensures that it can withstand harsh conditions while providing optimal performance. This component plays a vital role in maintaining the safety and reliability of your vehicle's braking system. For fleet operators looking for high-quality parts, Source One Parts Center is the best source for genuine Bendix OEM products, ensuring that your vehicles operate safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Maximum Operating Temperature
200 °F (93 °C)
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Differential Pressure
5.5 PSI
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.09 lb
