101381N

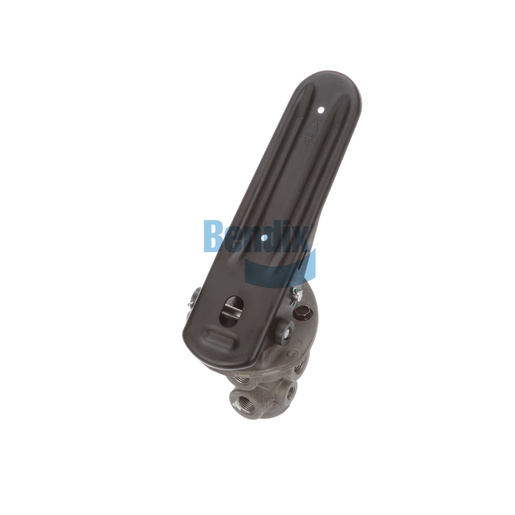

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a vital component in your truck's air brake system, designed to optimize braking performance and enhance safety. This valve allows for precise control over brake pressure, enabling smooth operation under various load conditions. With its robust construction, this valve can withstand extreme temperatures and heavy-duty applications, ensuring long-lasting reliability. Weighing 2.0 kg, it is built for durability without compromising ease of installation. Its thoughtful design includes a treadle pedal for user-friendly operation, making it an essential upgrade for any commercial vehicle. For those seeking genuine Bendix OEM parts, Source One Parts Center is the leading choice, known for its comprehensive inventory and commitment to quality service for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.91 IN
Width
115.1 mm (4.53 in)
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Length
234.4 mm (9.23 in)
Height
277.4 mm (10.92 in)
Initial Pedal Angle
34°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.88 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Pedal Pad Included
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Waterproof
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.5 lb
