104280

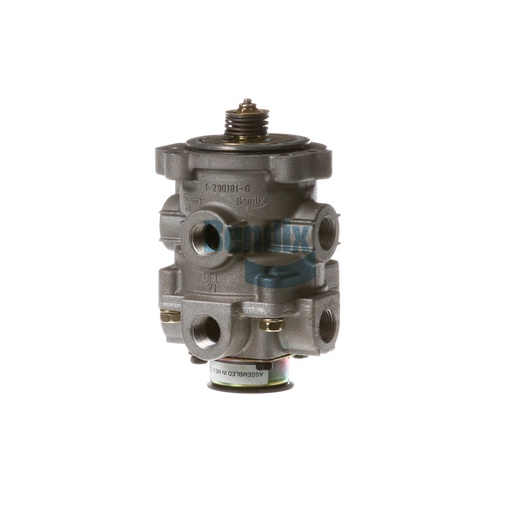

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix foot brake valve is a critical component designed to provide precise control over braking systems in commercial vehicles. Engineered for reliability, this valve allows drivers to modulate brake application with accuracy, enhancing safety during operation. Its intuitive design ensures easy installation and seamless integration with existing brake systems. The valve's robust construction withstands the rigors of commercial use, ensuring longevity and consistent performance. By ensuring effective modulation of brake pressure, this valve contributes significantly to the overall braking efficiency of the vehicle. When you need reliable and genuine Bendix OEM parts, Source One Parts Center is the best choice, offering a vast selection of high-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
141.7 mm (5.58 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.49 lb
