$214.95
$257.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

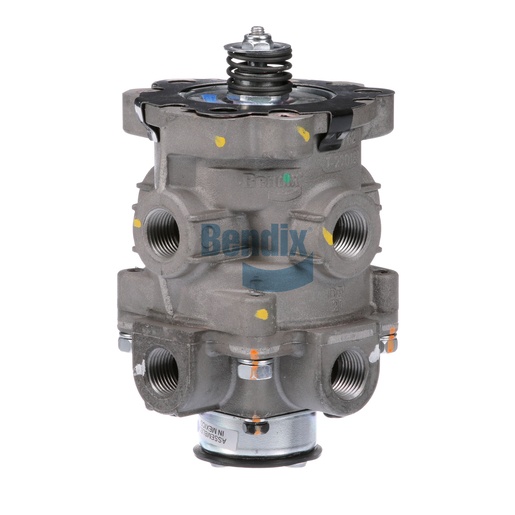

The Bendix foot brake valve is an essential component for controlling air brake systems in commercial vehicles. Designed for reliability and precision, this valve allows drivers to effectively manage braking pressure with ease and efficiency. Weighing just 1.0 kg (2.16 lb), the valve features a robust and compact design that ensures durability under various conditions. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), it is built to perform reliably in extreme environments. The valve's innovative design includes multiple supply and delivery ports, enabling seamless integration into your vehicle’s air brake system. By ensuring accurate control of braking pressure, this valve enhances overall vehicle safety. For all your genuine Bendix OEM part needs, Source One Parts Center is the premier choice, providing quality and expertise.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
141.7 mm (5.58 in)
Differential Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.16 lb
