106968

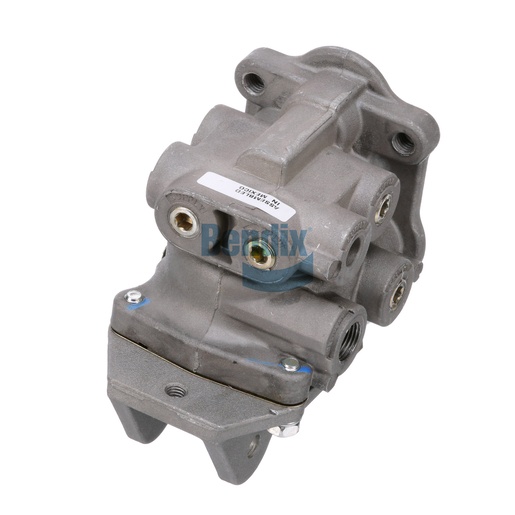

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve from Bendix is a crucial component designed to optimize the performance of foot-operated braking systems in commercial vehicles. This valve features a compact design, making it easy to install in various applications while ensuring reliable operation. With a net weight of 1.3 kg, it is lightweight yet durable, capable of withstanding harsh operating conditions. The valve allows for precise control of air pressure, significantly enhancing braking response and driver confidence. Its robust construction ensures longevity, making it an ideal choice for fleet maintenance. Investing in high-quality valves like this one is vital for maintaining optimal vehicle safety and performance. For genuine Bendix OEM parts, Source One Parts Center is your best option, offering reliable components that meet the highest standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Exhaust Port
1/2-14 NPT
Supply Port 7
1/2-14 NPT
Delivery Port 4
1/2-14 NPT (Plugged)
Delivery Port 1
1/4-18 NPT (Plugged)
Delivery Port 3
1/4-18 NPT (Plugged)
Supply Port 1
1/4-18 NPT (Plugged)
Supply Port 3
1/4-18 NPT (Plugged)
Supply Port 4
1/4-18 NPT (Plugged)
Supply Port 5
1/4-18 NPT (Plugged)
Supply Port 6
1/4-18 NPT (Plugged)
Supply Port 8
1/8-27 NPT (Plugged)
Width
104.1 mm (4.1 in)
Height
136.5 mm (5.38 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery Port 2
3/8-18 NPT
Length
304.5 mm (11.99 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Supply Port 2
Cored Closed
Country of Origin
Mexico
Pedal Included
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Mounting Plate Included
Yes
Weight
2.76 lb
