DESCRIPTION

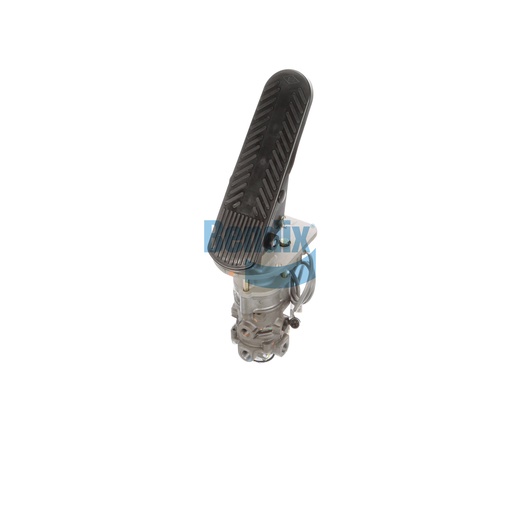

The Foot Brake Valve from Bendix is a key component in the braking system, providing a reliable means of controlling brake application through foot operation. Designed for heavy-duty usage, this valve features a robust construction that ensures consistent performance, even under demanding conditions. Weighing 8.53 lbs, it is engineered for durability and ease of installation, allowing for quick replacements and maintenance. The valve's unique design includes features such as a dust shield and a retarder connector, enhancing its functionality and safety. This component is essential for drivers seeking effective control and responsiveness in their braking system. Source One Parts Center is the ultimate destination for securing genuine Bendix OEM parts, ensuring your vehicle operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
28°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Retarder Cable Length
31.50 IN
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Initial Pedal Angle
50°
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Retarder Connector
ITT Cannon Sure-Seal Series 4-Way Circular Connector
Country of Origin
Mexico
BVA-85 Included
No
Waterproof
No
Pedal Material
Steel
Plunger Material
Steel
Graduation Spring Style
Steel Spring
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Retarder Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
8.53 lb
