107746N

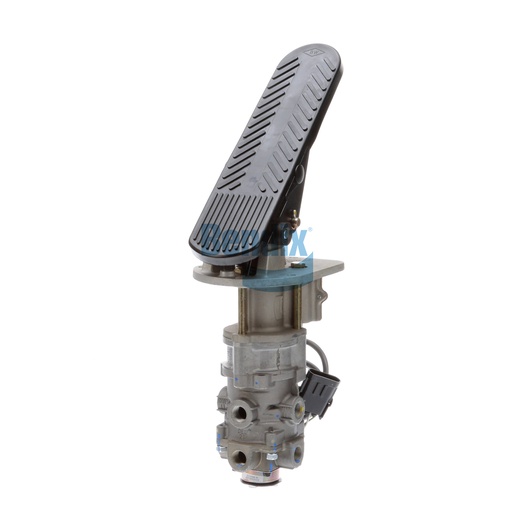

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is an essential component designed for reliable braking performance in commercial vehicles. Engineered with precision, this valve features a robust floor treadle design for easy operation and enhanced control. Its durable steel construction ensures long-lasting use, making it a vital part of any truck’s braking system. The valve is equipped with a retarder connector for improved functionality and comes with a weatherproof dust shield to protect it from contaminants, ensuring optimal performance in various conditions. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to withstand extreme environments. The Foot Brake Valve's compliance with FMVSS 121 standards guarantees safety and reliability on the road. Whether you're replacing a worn-out part or upgrading your braking system, this valve is designed to meet the demanding needs of heavy-duty trucks. For the best selection of genuine Bendix OEM parts for your commercial vehicle, Source One Parts Center is your trusted source, ensuring quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
28°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Retarder Cable Length
31.50 IN
Initial Pedal Angle
40°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Waterproof
No
Pedal Material
Steel
Plunger Material
Steel
Graduation Spring Style
Steel Spring
Retarder Connector
Weather Pack Series 4-Way Sealed Connector (Male)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Retarder Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
8.53 lb
