108054

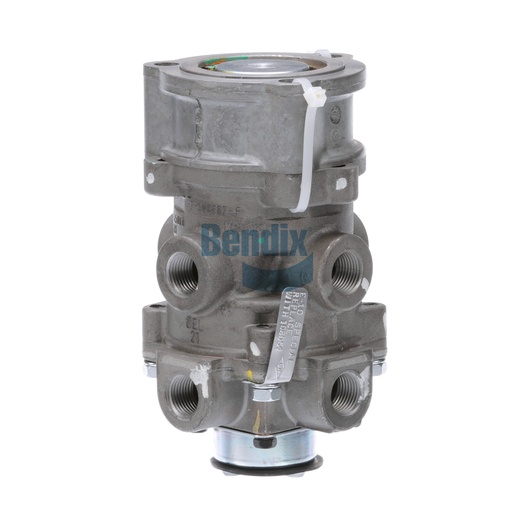

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Experience enhanced braking control with the Bendix Foot Brake Valve, a vital component in your vehicle's air braking system. This valve, engineered for precision and reliability, allows for smooth operation and effective modulation of brake pressure, ensuring that your vehicle responds accurately to driver input. Weighing 1.2 kg, the valve is designed to withstand the demanding conditions of commercial use, providing long-lasting performance. Its design includes key features that enhance safety and functionality, making it an essential part for any heavy-duty vehicle. Trust Bendix for quality and reliability in your braking systems. Source One Parts Center stands out as the best place to purchase genuine Bendix OEM parts, delivering assurance and excellence for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
150.1 mm (5.91 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Steel Spring
Weight
2.69 lb
