229500N

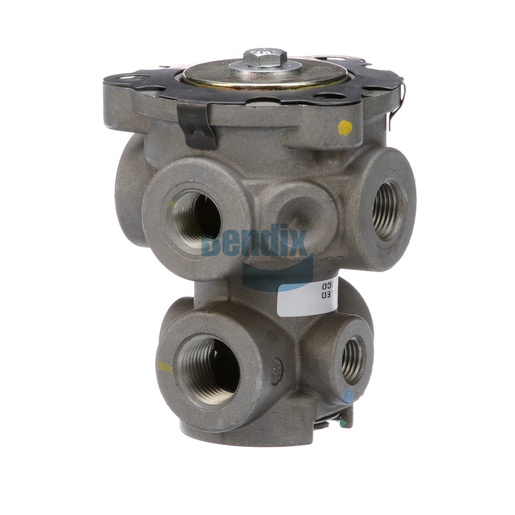

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix foot brake valve is engineered for superior performance and reliability in commercial vehicle braking systems. Featuring a robust design with a steel pedal and multiple ports, this valve allows for efficient brake operation under various conditions. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to withstand extreme environments, ensuring consistent performance. The valve's unique port configuration provides flexibility in installation, making it compatible with a wide range of commercial vehicles. By choosing this genuine Bendix foot brake valve, you enhance the safety and control of your braking system, which is essential for heavy-duty applications. Source One Parts Center is the ideal destination for securing authentic Bendix OEM parts, ensuring your commercial vehicle remains safe and efficient.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Height
110.0 mm (4.33 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Length
81.5 mm (3.21 in)
Harmonized System (HS) Code
848120
Width
85.9 mm (3.38 in)
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
1.5 lb
